In Launceston, where the Tamar Valley creates a mix of alluvial terraces and residual clay profiles, the triaxial test is the standard method to define shear strength parameters under controlled drainage conditions. Our laboratory follows AS 1726-2017 for specimen preparation and saturation, ensuring that the effective stress path matches the in‑situ conditions of the site. The procedure measures cohesion and friction angle from three confining pressures, which is particularly relevant for the deep clay layers found near the North Esk River. We also recommend combining this with a losa de cimentacion analysis when designing shallow footings on soft ground, because the undrained strength from the UU triaxial directly governs bearing capacity in saturated clays.
The CU triaxial with pore‑pressure measurement gave us effective stress parameters that halved the over‑conservatism of the original design in Launceston's clay terraces.
Methodology and scope
A typical commercial project in the Kings Meadows area required a CU triaxial series with pore‑pressure measurement to evaluate long‑term slope stability. Our team prepared 38 mm specimens from undisturbed tube samples, back‑saturated them to a B‑value above 0.95, and consolidated them at effective stresses representing the overburden at 4 m, 8 m and 12 m depth. The test sequence included:
UU (unconsolidated‑undrained) for immediate shear strength in low‑permeability clays
CU (consolidated‑undrained) with pore‑pressure transducers for effective stress parameters
CD (consolidated‑drained) for granular fills and embankment design
Each phase was logged at a strain rate calculated from the consolidation stage, following the AS 1289.6.4.2‑11 protocol. For the Launceston project the friction angle ranged from 24° to 28° and cohesion from 5 to 15 kPa, values that later fed directly into the slope stability analysis.

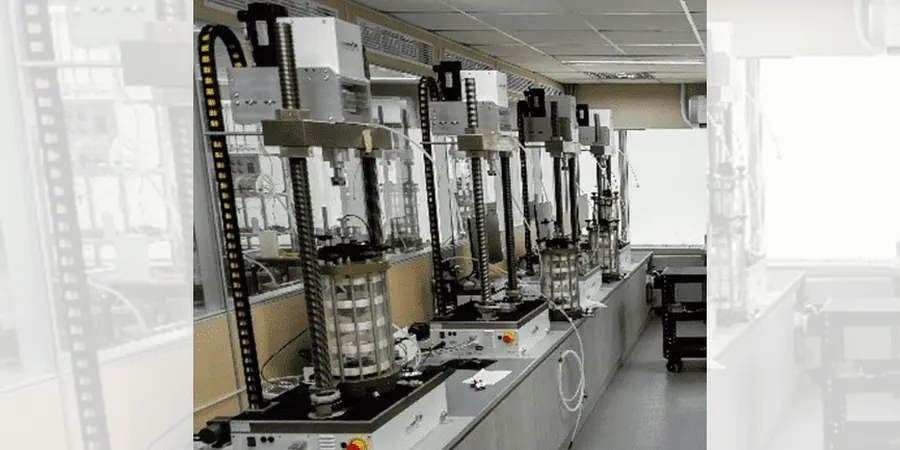

Technical reference image — Launceston
Local considerations
The contrast between the silty sands of the West Launceston hills and the soft estuarine clays near the city centre is dramatic. A building that performs well on the hill slope can settle excessively just 500 m away on the flats if the triaxial parameters are not correctly assigned. In one case we reviewed, a design team used drained parameters from a CU test on a clay that was actually loading faster than the consolidation rate, overestimating strength by nearly 30 %. The follow‑up CD test corrected the friction angle to 22° and prevented a foundation failure. Getting the drainage condition right in Launceston's variable soils is not optional.
Three‑stage unconsolidated‑undrained test on 38 mm specimens. Provides immediate undrained shear strength for preliminary bearing capacity calculations and short‑term stability checks. Delivered within 5 working days.
02
CU+CD triaxial (advanced design)
Consolidated‑undrained with pore‑pressure measurement plus a separate consolidated‑drained test on duplicate specimens. Delivers effective stress parameters (c', φ') and stress‑strain curves for deep foundations, embankments and slope stability analysis. Delivered within 12 working days.
Applicable standards
AS 1726-2017 – Geotechnical site investigations, AS 1289.6.4.2 – Consolidated undrained triaxial (with pore pressure), AS 1289.6.4.1 – Unconsolidated undrained triaxial
Frequently asked questions
What is the difference between UU, CU and CD triaxial tests?
UU (unconsolidated‑undrained) applies confining pressure and shears without drainage, measuring total strength for immediate loading. CU (consolidated‑undrained) allows full consolidation under confining stress before shearing with drainage closed, giving effective stress parameters when pore pressure is measured. CD (consolidated‑drained) permits full drainage during shearing, simulating long‑term drained conditions in granular soils or slow loading on clays.
How much does a triaxial test cost in Launceston?
For a standard UU series on three specimens the cost typically ranges between AU$2.900 and AU$4.770, depending on specimen diameter and reporting detail. CU and CD tests are quoted individually because of the longer setup and data‑logging requirements.
Which triaxial test is best for Launceston's clay soils?
For the soft estuarine clays near the Tamar River we normally recommend a CU test with pore‑pressure measurement. This captures the effective stress path under undrained loading, which is critical for foundation design on saturated, low‑permeability clays. CD tests are reserved for granular fills or long‑term slope stability where full drainage is expected.
