In Launceston, the soils along the Tamar Valley often surprise engineers with their variable plasticity. We regularly test clays from the Mowbray area that behave completely differently from the silty clays found near South Launceston. Atterberg limits give us the first real indication of how a soil will respond to moisture changes, which is critical in a region where annual rainfall sits around 700 mm. Before running any bearing capacity calculations, the team here always insists on knowing the liquid limit and plasticity index first. For projects involving expansive clays, we also recommend a complementary geotechnical instrumentation program to monitor long-term moisture fluctuations.
In Launceston, the soils along the Tamar Valley often surprise engineers with their variable plasticity — clays from Mowbray behave completely differently from silty clays near South Launceston.
Methodology and scope
Comparing soils from Newstead with those from Kings Meadows, the differences in plasticity are striking. The basaltic clays in the eastern suburbs tend to have high plasticity indices, often exceeding 35%, while the alluvial deposits near the North Esk River show moderate plasticity in the 15 to 25% range. Our lab procedures follow AS 1289.3.1.1 strictly, using the Casagrande cup for liquid limit and the thread-rolling method for plastic limit. The key parameters we determine include the liquid limit (LL), plastic limit (PL), and plasticity index (PI). These values feed directly into the classification system per AS 1726. When the shrinkage limit is also needed, we run the mercury displacement method with proper safety protocols. For road projects crossing the floodplains, we pair these tests with a subgrade evaluation to assess pavement support under wet conditions.

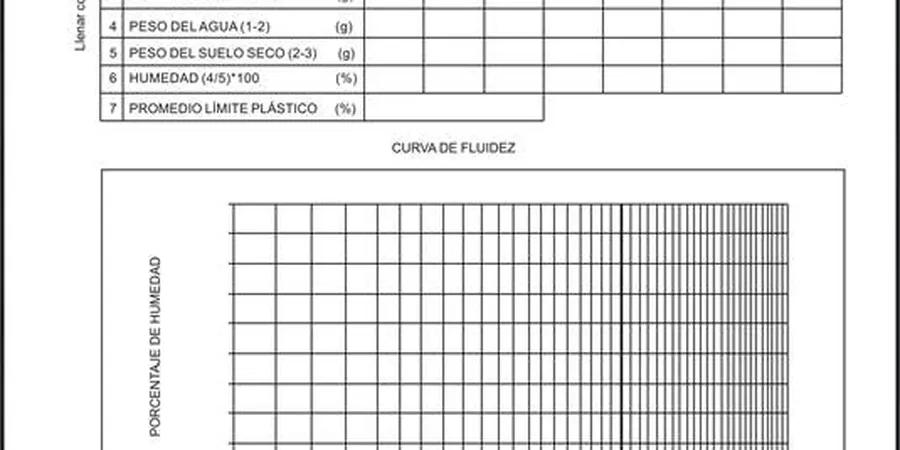

Technical reference image — Launceston
Local considerations
A residential development in Prospect Vale recently faced slab heave because the Atterberg limits of the underlying clay were not determined early enough. The soil had a plasticity index above 40%, which is a clear warning sign for reactive clay. Without that data, the engineer assumed moderate shrink-swell behavior and designed a standard slab. Within two years, differential movement reached 35 mm. Cracking appeared in load-bearing walls. The fix required deep underpinning and cost nearly three times what a proper geotechnical investigation would have. Identifying high-plasticity clays through Atterberg limits before construction avoids this entirely.
Determination of the moisture content at which soil transitions from liquid to plastic state. Run per AS 1289.3.1.1 with multi-point method for accuracy.
02
Plastic Limit & Plasticity Index
Thread-rolling test to find the plastic limit, then calculating the plasticity index. Essential for classifying fine-grained soils per AS 1726.
03
Shrinkage Limit Determination
Mercury displacement method to measure the shrinkage limit. Critical for expansive clay assessment in Launceston residential areas.
04
Linear Shrinkage Test
Bar linear shrinkage measurement per AS 1289.3.4.1. Provides direct indication of soil reactivity for pavement and slab design.
Applicable standards
AS 1289.3.1.1 (Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils), AS 1726:2017 (Geotechnical Site Investigations), AS 1289.3.2.1 (Determination of the Plastic Limit of a Soil)
Frequently asked questions
How much does Atterberg limits testing cost in Launceston?
The typical range for a full suite of Atterberg limits (liquid limit, plastic limit, and plasticity index) is between AU$90 and AU$150 per sample. This includes the Casagrande cup method and thread-rolling test. Additional tests like shrinkage limit or linear shrinkage add AU$30 to AU$60 each. Volume discounts apply for projects with more than 10 samples.
What is the difference between liquid limit and plastic limit?
The liquid limit is the moisture content where soil begins to flow under its own weight, measured using the Casagrande cup with 25 blows. The plastic limit is the moisture content where soil crumbles when rolled into a 3 mm thread. The difference between them is the plasticity index, which tells you how much the soil can change volume with moisture variation. High plasticity index means high shrink-swell potential.
Which Launceston suburbs have the most reactive soils?
Suburbs on the eastern side such as Newstead, East Launceston, and parts of Mowbray have basaltic clays with plasticity indices frequently exceeding 40%. Areas along the floodplains of the North Esk and South Esk rivers, including Kings Meadows and Youngtown, tend to show moderate plasticity between 15% and 25%. The western suburbs like West Launceston and Prospect Vale have mixed soils with variable reactivity.
Why do I need Atterberg limits if I already have soil classification?
Visual classification alone cannot quantify shrink-swell behavior. Atterberg limits provide numerical values that directly feed into foundation design, pavement thickness, and reactive site classification per AS 2870. Without these numbers, you are guessing at the soil's response to seasonal moisture changes. In Launceston's climate, where wet winters and dry summers alternate, this data is essential for avoiding slab heave or settlement.
