Field crews in Launceston use tracked excavators and portable shear vane testers to assess slope failures across the Tamar Valley. The city’s steep terrain, combined with 680 mm of annual rainfall, creates frequent stability issues in both natural slopes and cut batters. Our slope failure analysis starts with a walkover survey, identifying tension cracks, seepage zones, and displaced soil blocks. We then drill boreholes to recover undisturbed samples for laboratory testing. Each investigation follows AS 1726 for subsurface logging and AS 4678 for earth-retaining structures. Before excavation work, we recommend a losa de cimentación assessment for adjacent structures when shallow foundations are at risk.
A shallow failure plane in weathered dolerite can mobilize within hours after 50 mm of rain, yet remain invisible until cracking appears.
Methodology and scope
A residential subdivision on the western slopes of Launceston required slope failure analysis after a 2023 landslide damaged three new homes. Our team installed inclinometers and piezometers to measure movement and pore pressure over eight weeks. The data showed a deep-seated failure plane within the weathered dolerite layer. We modeled the slope using limit equilibrium methods per AS/NZS 1170 loading criteria. For shallow translational slides, we often combine this with a georradar GPR survey to map subsurface voids and tree root channels.
Limit equilibrium and finite element modeling (LEM/FEM)
Inclinometer and standpipe piezometer monitoring
Shear strength testing (direct shear, triaxial)
Remediation design including drainage and soil nails

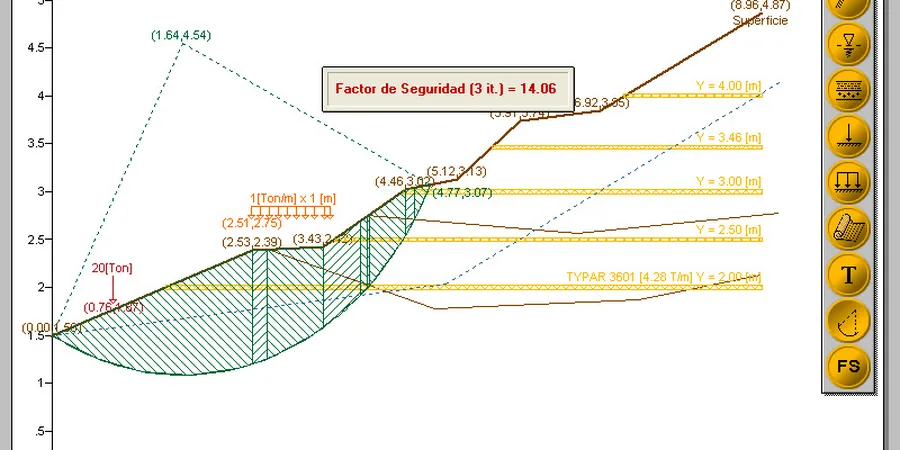

Technical reference image — Launceston
Local considerations
A common mistake in Launceston is assuming a stable slope today will remain stable tomorrow. Construction teams often strip vegetation from the toe of a slope to gain working space, removing root reinforcement and triggering failure. Without slope failure analysis, these cuts can fail within a single wet season. The Tamar Valley’s reactive clay subsoils lose strength rapidly when saturated. Relying on visual inspection alone is dangerous. Proper analysis with measured shear strength parameters and groundwater monitoring is the only way to predict collapse.
Walkover survey, crack mapping, and historical photo review. Suitable for low-risk cuts and small embankments. Includes preliminary factor of safety estimate using published strength correlations.
02
Quantitative Stability Analysis
Borehole drilling, undisturbed sampling, laboratory shear testing, and limit equilibrium modeling. Delivers a calculated factor of safety for design-stage approvals.
03
Monitoring and Remediation Design
Installation of inclinometers, piezometers, and surface markers. Real-time data collection for active landslides. Remediation options include drainage, soil nails, and retaining walls.
Applicable standards
AS 1726:2017 Geotechnical site investigations, AS 4678:2002 Earth-retaining structures, AS/NZS 1170.4:2007 Structural design actions – Earthquake
Frequently asked questions
What is the typical cost for slope failure analysis in Launceston?
Cost ranges between AU$1,260 and AU$3,330 depending on site access, number of boreholes, and laboratory testing volume. A simple walkover assessment for a small residential block starts at the lower end, while a full investigation with monitoring for a large subdivision sits near the upper limit. Contact us for a site-specific quote.
How long does a slope failure investigation take?
A basic assessment with only field observations takes 2-3 days. A comprehensive program including drilling, lab testing, and modeling typically requires 4-6 weeks. Monitoring can extend to 12 weeks or more if seasonal data is needed.
Does Launceston require special slope stability standards?
Yes. The Launceston City Council applies AS 4678 for earth-retaining structures and often requires a Geotechnical Site Investigation Report per AS 1726. The region's dolerite bedrock and high-rainfall climate demand site-specific shear strength testing rather than generic values.
