A common mistake we see in Launceston construction is assuming a shallow footing will work on the deep alluvial deposits along the Tamar River valley. These soils can vary from firm clay to loose sand within metres, and without proper micropile design, the foundation either settles unevenly or requires excessive excavation. For sites where access is restricted or headroom is low, micropiles transfer structural loads to competent strata without disturbing adjacent buildings. In Launceston's heritage precinct, we've used this method to reinforce existing footings without shutting down operations, combining the micropile design with an amplification sismica assessment to account for local site effects.
In Launceston's alluvial environment, skin friction from controlled pressure grouting often doubles the capacity compared to gravity-grouted piles.
Methodology and scope
We worked on a three-storey commercial building on Brisbane Street where the geotechnical report showed stiff clay over weathered basalt at 14 metres depth. The client needed a foundation that could handle 900 kN per column without excavating a full basement. Our micropile design used 200 mm diameter piles with a single central bar, grouted under pressure to develop skin friction in the clay layer. We paired this with ensayo SPT every 1.5 metres to confirm N-values along the shaft and correlated them with shaft resistance using the FHWA method. The final layout was 12 piles per column cap, each tested to 1.5 times working load. For the upper collar zone we specified a losa de cimentacion to distribute lateral loads from wind and seismic events.

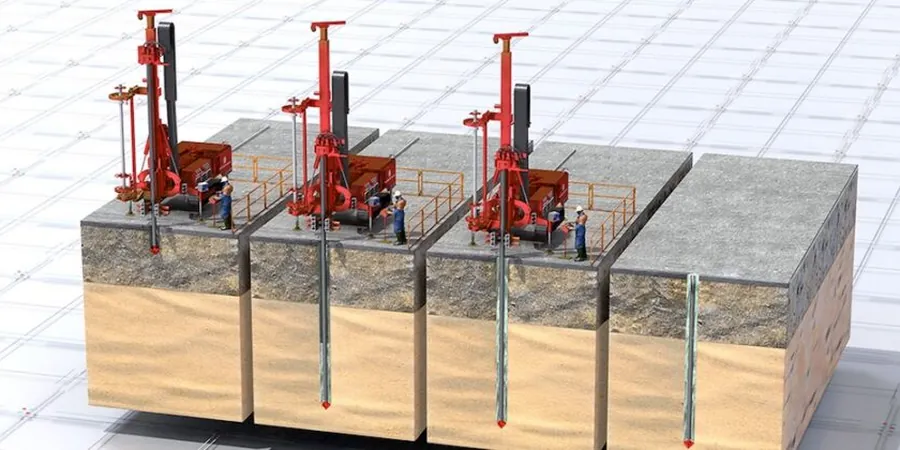

Technical reference image — Launceston
Local considerations
Launceston sits over the Tamar Valley graben, a structural depression filled with Tertiary sediments and overlain by Quaternary alluvium. The water table can rise to within 2 metres of the surface after heavy rain, and we have recorded seasonal fluctuations of 1.2 metres in the Invermay area. Without a micropile design that accounts for buoyancy effects and potential scour, the foundation can lose capacity when the water table rises. We always check for abandoned mine workings from the old tin and coal mining periods, particularly in the South Launceston area, as these voids can cause sudden loss of grout during installation.
Static compression to 1.5x design load per AS 2159
Corrosion protection class
Class A (AS 2159) for permanent works
Associated technical services
01
Capacity assessment and load testing
We calculate ultimate shaft and base resistance using local SPT correlations and verify performance with static compression tests to 1.5 times design load, as required by AS 2159.
02
Corrosion protection design
For permanent micropiles in Launceston's aggressive soils, we specify cement grout cover ≥ 40 mm and galvanised or epoxy-coated reinforcement to meet Class A corrosion protection.
03
Group effect and settlement analysis
When piles are spaced closer than 3 diameters, we evaluate group efficiency using the Converse-Labarre formula and compute differential settlement using elastic continuum methods.
Applicable standards
AS 2159-2009 Piling – Design and installation, AS 3600-2018 Concrete structures (grout design), FHWA-NHI-05-039 Micropile design and construction
Frequently asked questions
What is the typical cost range for micropile design in Launceston?
For a standard commercial project in Launceston, the design and verification package typically ranges between AU$2,060 and AU$7,030, depending on the number of pile types, load test requirements, and corrosion protection class. Larger volumes reduce the per-pile cost.
How deep do micropiles need to go in Launceston soils?
Depths vary from 8 to 18 metres depending on the site. In the central business district, weathered basalt is often encountered at 12–14 metres, while in the Invermay flats alluvium can extend to 20 metres before reaching competent material. We always confirm with SPT or CPT before finalising the design.
Can micropiles be installed inside existing buildings in Launceston?
Yes. The drilling rigs we use have a 2.5 metre headroom option, so we can install micropiles inside basements or ground-floor slabs with minimal disruption. We have completed several retrofits on Elizabeth Street where the building remained occupied during installation.
What load capacity can micropiles achieve in Launceston?
Working loads typically range from 300 kN to 1000 kN per pile in the alluvial soils, and up to 1200 kN when bearing into the weathered basalt. The key variable is the grout-to-ground bond stress, which we estimate from the soil type and confirm with a preliminary test pile.
Do micropiles need a structural slab or pile cap in Launceston?
Almost always. We design a reinforced concrete pile cap or a ground beam to connect the micropiles and transfer the column loads. The cap also provides lateral restraint and protects the pile head from corrosion. For very soft sites, we sometimes combine the cap with a ground slab cast on grade.
