Launceston sits in a valley where the Tamar River meets the Bass Strait coastal plain. The region gets around 670 mm of rain annually, with heavy winter falls that saturate the topsoil. That moisture drives many of the ground challenges we see here. When a site has soft alluvial clays or silty sands, the subgrade just won't hold loads without help. That is where a proper geogrid specification becomes essential. We define the tensile strength, aperture size, and junction efficiency needed to reinforce the soil mass. Every spec we issue ties back to the actual site conditions, not a generic table. Before writing a spec, we often review data from a study of mechanics of soils to confirm the foundation layer properties. That baseline lets us pick the right geogrid type for the job.
A geogrid spec without site-specific soil data is just a guess. We always verify subgrade stiffness before issuing the tensile requirements.
Methodology and scope
Our team uses a standard test frame to verify geogrid tensile properties per AS 4678. The frame has a constant-rate-of-extension drive that pulls the specimen at 20 mm per minute. We measure the secant modulus at 2% and 5% strain. For the junction strength, we clamp individual ribs and pull them apart. In Launceston, we see two main geogrid types: uniaxial for walls and slopes, and biaxial for paved roads. The aperture shape must match the aggregate size. If the stone is 20 mm, the grid openings cannot be larger than 40 mm or smaller than 15 mm. We also run a field density test with sand cone on the compacted fill before placing the geogrid. That step confirms the subgrade has enough stiffness to mobilise the reinforcement. Without that data, the tensile capacity stated in the spec may never be reached in the field.

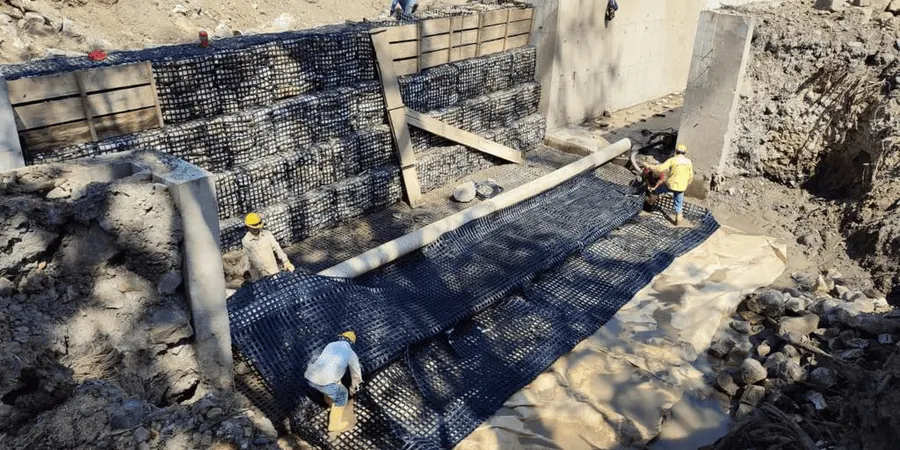

Technical reference image — Launceston
Local considerations
A retaining wall project on the eastern side of Launceston failed three years ago because the geogrid spec was too weak. The design called for a 50 kN/m uniaxial grid, but the actual fill was a wet silty clay that never reached the required density. Within six months the wall face bulged 150 mm. We saw the same pattern on a road project near the airport: the biaxial geogrid had apertures of 50 mm, but the crushed rock base was 10 mm, so the stone just pushed through the openings. Launceston contractors often order grids based on price, not on the soil conditions. That is a mistake. The wrong spec leads to differential settlement, pavement cracking, or wall rotation. A proper geogrid specification must account for the actual fill type, compaction moisture, and long-term creep behaviour.
We test geogrid samples in our lab to confirm the manufacturer's claimed tensile strength, strain at failure, and junction efficiency. The results go directly into the specification document.
02
Subgrade stiffness assessment
Before writing a spec, we evaluate the in-situ subgrade modulus using plate load tests or DCP. That data determines whether a uniaxial or biaxial grid is appropriate and what stiffness the grid must provide.
03
Installation quality control
During construction we check the overlap length, the tension in the grid, and the cover thickness. We also sample the fill material to confirm the aperture size matches the aggregate gradation.
Applicable standards
AS 4678:2002 (Earth-retaining structures), AS 1726:2017 (Geotechnical site investigations), GRI-GG4(c) (Standard test method for geogrid creep)
Frequently asked questions
How much does a geogrid specification cost in Launceston?
The cost ranges between AU$600 and AU$1,870 depending on the number of samples tested and the complexity of the site. For a typical road project with one grid type and three tensile tests, the fee is around AU$950. Volume discounts apply for multiple locations.
What tensile strength should I specify for a retaining wall in Launceston?
For walls up to 4 m height with granular backfill, a uniaxial grid of 50 kN/m ultimate tensile strength is common. If the backfill is silty clay, you need at least 80 kN/m to account for lower friction and higher creep. The final value depends on the wall geometry and the factor of safety required by AS 4678.
How does the wet climate in Launceston affect geogrid performance?
The high moisture content reduces the shear strength of the soil, which lowers the pullout capacity of the grid. For wet sites we specify a grid with a higher junction efficiency (≥95%) to ensure the ribs do not separate under load. Creep resistance also becomes critical because the soil stays saturated for months during winter.
