The design of raft foundations in Launceston must comply with AS 1726 for site investigation and AS/NZS 1170 for structural loads. Launceston's subsurface profile varies from firm clay over Tertiary basalt in the city center to soft alluvial deposits near the Tamar River. A raft foundation spreads structural loads over a wide area, reducing differential settlement in these variable conditions. Before finalizing the raft layout, geotechnical engineers typically perform a [MASW survey](/masw-vs30/) to map shear-wave velocity profiles and confirm soil stiffness across the site.
In Launceston, the key risk is not bearing capacity but differential settlement between basalt pinnacles and soft alluvial pockets — a raft foundation mitigates this by rigidly redistributing loads.
Methodology and scope
Launceston's urban development expanded rapidly during the 19th century gold rushes, with many heritage buildings founded on shallow basalt or timber piles. Modern raft foundation design here must account for the variable depth of the basalt cap, which can be as little as 1 meter in some suburbs like East Launceston and over 10 meters in others. Our team integrates soil borings with plate load tests to calibrate the subgrade reaction modulus (k-value) used in finite element raft models. Common parameters we evaluate include the following:
Allowable bearing capacity (typically 150–400 kPa for basalt, 50–100 kPa for alluvial clay)
Differential settlement limits under service loads (< 25 mm for sensitive structures)
Modulus of subgrade reaction (k = 20–60 MN/m³ for stiff clay/basalt)
Groundwater level (often within 2–4 m of the surface near the river)
This data feeds directly into the raft thickness, reinforcement layout, and edge beam design.

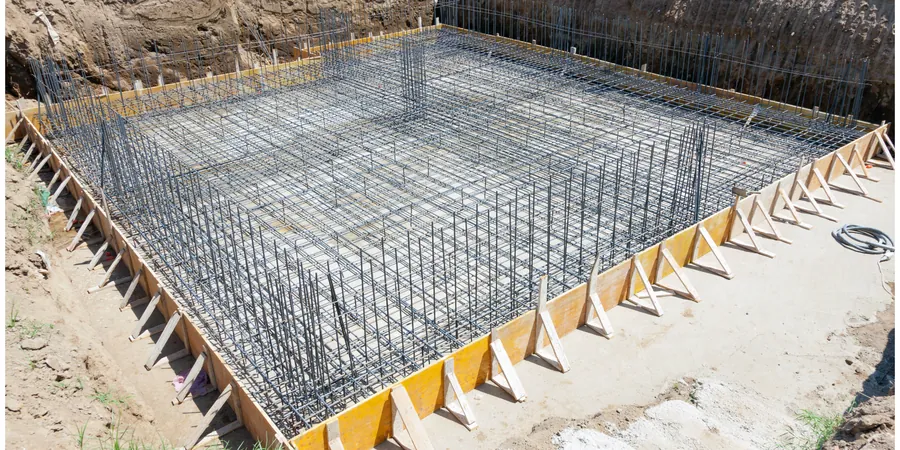

Technical reference image — Launceston
Local considerations
The Tamar Valley experiences a mild oceanic climate with annual rainfall around 700 mm. Prolonged wet winters can saturate Launceston's expansive clay soils, triggering heave beneath shallow rafts. Conversely, dry summers cause shrinkage, leading to edge curling. The most critical scenario is a soft alluvial lens overlain by a stiff crust — the raft may punch through the crust into the softer layer if the reinforcement is insufficient. A detailed consolidation test program, combined with moisture monitoring, helps the design team set appropriate factor of safety against bearing failure and long-term creep.
Boreholes to 10 m depth, standard penetration tests (SPT) every 1.5 m, undisturbed tube sampling for consolidation and triaxial testing. Includes groundwater monitoring standpipes.
02
Raft Foundation Design Review
Finite element modeling of raft-soil interaction using SAFE or PLAXIS 3D. We check punching shear, differential settlement, and reinforcement optimization against AS 3600.
Applicable standards
AS 1726 – Geotechnical Site Investigations, AS/NZS 1170.0:2002 – Structural Design Actions, AS 3600 – Concrete Structures (raft reinforcement), AS 1289 – Plate Load Test for Subgrade Reaction
Frequently asked questions
What is the typical cost range for a raft foundation design in Launceston?
For a standard residential raft (up to 200 m²), the geotechnical investigation plus structural design typically ranges from AU$1.410 to AU$5.930, depending on the number of boreholes and complexity of the soil profile.
How deep should a raft foundation be in Launceston's clay soils?
In Launceston's alluvial clays, a raft is usually placed at least 300 mm below the finished ground level, with the base extending below the active zone of seasonal moisture change (about 0.6–1.0 m in these soils). On basalt, a thinner raft at shallower depth is common.
Can a raft foundation be built on Launceston's basalt?
Yes — basalt provides excellent bearing capacity (300–400 kPa). However, the basalt surface is often irregular with pinnacles and solution cavities. A raft must be stiff enough to span across these irregularities, and a geophysical survey is recommended to map the rock head profile.
What is the difference between a raft and a strip footing in Launceston?
A strip footing concentrates load along wall lines, while a raft distributes load over the entire building footprint. In Launceston's variable soils, a raft reduces differential settlement risk and is preferred for sites with soft pockets or high groundwater. Strip footings work only where basalt is near the surface and uniform.
