Too many builders in Launceston assume the ground is uniform across the Tamar Valley. It's not. We've seen foundations designed on surface observations alone — only to hit soft alluvial clays or loose sands mid-excavation. That's when budgets blow out. An SPT (Standard Penetration Test) gives you the real story below grade: blow counts that correlate directly to bearing capacity and settlement potential. Without it, you're guessing on pad footings or slab thickness. The N-value from each test interval becomes the backbone of your geotechnical model, especially when paired with a subgrade reaction analysis to verify compaction targets for road or slab subgrades.
SPT blow counts in Launceston's alluvial flats often range N=8–15, requiring deeper foundations or ground improvement before slab construction.
Methodology and scope
Launceston sits on a mix of Tertiary basalts and Quaternary alluvial deposits from the North Esk and South Esk rivers. Groundwater can sit at 2–4 m depth in the low-lying areas around Invermay, which directly affects SPT efficiency. We run the test per AS 1289.6.3.1 using a 63.5 kg hammer dropped 760 mm, recording N-values at 150 mm intervals. For cohesive soils we also sample for Atterberg limits and triaxial strength — but the SPT remains the primary tool for granular strata. When we encounter gravel seams near the river terraces, we switch to CPT for continuous profiling, but for most residential and light commercial work in Launceston the SPT is the standard.

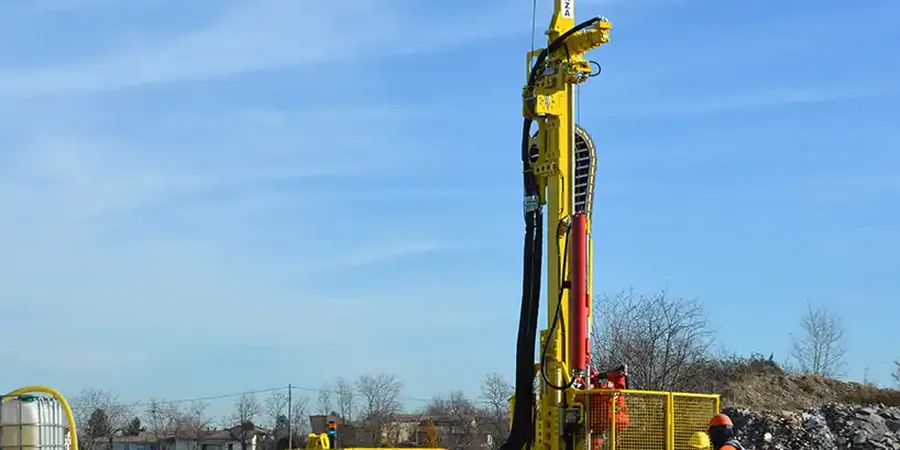

Technical reference image — Launceston
Local considerations
Launceston's urban expansion since the 1970s has pushed development onto former floodplains and reclaimed wetlands, particularly in the Mowbray and Kings Meadows corridors. These areas often contain soft clays and loose sands that are prone to liquefaction under seismic loading. The SPT (Standard Penetration Test) is the primary method for evaluating cyclic resistance ratio (CRR) using the NCEER / Youd-Idriss framework. Ignoring low blow counts in these zones can lead to differential settlement, foundation rotation, or even structural collapse during a moderate earthquake. We've seen projects where a single SPT borehole revealed N-values below 5 at 3 m depth — prompting a switch to ground improvement before a single footing was poured.
Single-borehole SPT to 10 m depth for house slabs, footings, and retaining walls. Includes N-value log, soil classification, and settlement estimate per AS 2870.
02
Commercial & Industrial SPT
Multi-borehole program with SPT at 1.5 m intervals to 20 m. Designed for warehouse slabs, bridge abutments, and retaining structures. Reports include liquefaction assessment and bearing capacity.
03
SPT with Seismic Hazard Screening
Combined SPT and shear-wave velocity correlation (Vs30) to classify site class per AS 1170.4. Essential for multi-storey projects in Launceston's seismic zone.
Applicable standards
AS 1289.6.3.1 — Standard Test Method for SPT, AS 1726:2017 — Geotechnical Site Investigations, AASHTO T-206 — Standard Method for SPT
Frequently asked questions
What is the typical cost of an SPT in Launceston?
For a standard single-borehole SPT to 10 m depth, the cost ranges between AU$880 and AU$1,120, including mobilisation and a basic geotechnical report. Multi-borehole programs or deeper holes increase the total proportionally.
How deep do SPT boreholes need to go in Launceston?
For residential slabs, 6–10 m is usually sufficient to penetrate through alluvial deposits and reach stiff clay or basalt. Commercial structures often require 15–20 m depth to assess deeper sand layers and avoid bearing on loose fill.
Can SPT detect liquefaction risk in Launceston?
Yes, SPT N-values are the primary input for liquefaction triggering analysis using the NCEER (Youd-Idriss) method. In Launceston's low-lying areas, we frequently encounter N-values below 10 in sandy strata, which require correction for fines content and confining stress to assess cyclic resistance.
How does SPT compare to CPT for Launceston soils?
SPT provides direct disturbed samples for classification, which is critical for Launceston's mixed basaltic and alluvial soils. CPT offers continuous profiling but no sample recovery. We typically recommend SPT for projects where soil type verification is essential, and CPT for rapid profiling in uniform sand deposits.
