A retaining wall project on the Tamar River foreshore in Launceston recently required a cellular confinement system to manage shallow groundwater and soft silty clays. Geocell design for that site involved selecting a 200 mm cell height with perforated walls to allow lateral drainage while distributing vertical loads from the adjacent roadway. The team combined this with a geotechnical drainage study to verify that pore pressures would not build behind the wall face. For the embankment above the wall, a separate stability analysis confirmed that the geocell-reinforced layer would limit differential settlement under cyclic traffic loading. The design followed AS 4678-2002 for earth-retaining structures and relied on site-specific shear strength parameters obtained from triaxial tests on undisturbed samples.
Geocell design in Launceston's wet environment requires a system that drains freely while maintaining tensile integrity under sustained traffic loads.
Methodology and scope
Launceston receives around 670 mm of annual rainfall, concentrated in winter and spring, which saturates the upper soil horizons and reduces subgrade bearing capacity. Geocell design in this climate must account for moisture-induced softening of the foundation layer beneath the cell system. The cellular structure is filled with granular material—typically a well-graded crushed rock with less than 5% fines—to create a stiff mattress that spreads wheel loads over a wider area. Key parameters include cell aspect ratio (height-to-weld spacing), seam peel strength, and the interface friction angle between the geocell and the subgrade. The laboratory runs full-scale pullout tests on the geocell-sand interface and verifies polymer durability against UV exposure using AS 1289. For projects near the Esk River, where peat lenses are common, the geocell layer is often underlain by a woven geotextile separator to prevent intermixing of fill with the soft organic matrix.

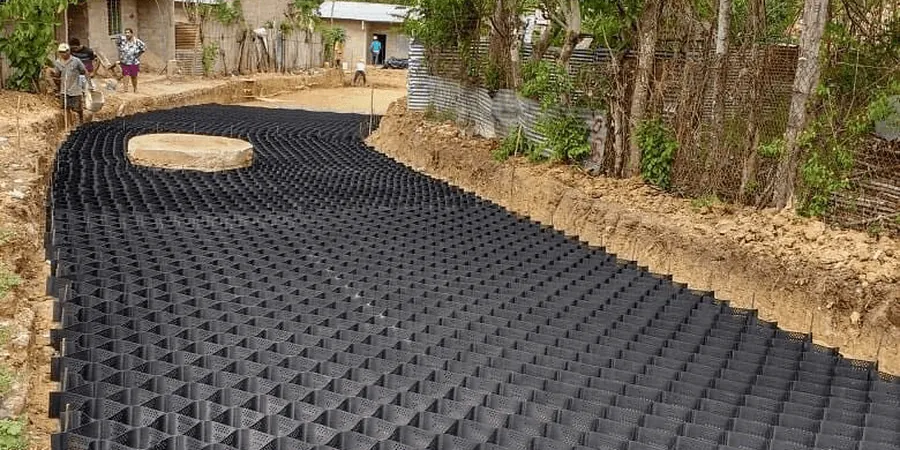

Technical reference image — Launceston
Local considerations
The alluvial terraces along the South Esk River in Launceston contain soft to firm clays with undrained shear strengths between 20 and 60 kPa. These deposits are prone to long-term creep and differential settlement when loaded without confinement. A geocell design that ignores the creep potential of the underlying clay may experience excessive vertical deformations, especially under sustained storage or parking loads. Additionally, the groundwater table in the Invermay precinct can rise within 1 m of the surface after heavy rain, reducing the effective stress in the foundation layer. The design must include a drainage blanket beneath the geocell or a perforated cell geometry that prevents water entrapment. Without these measures, the risk of bearing failure beneath the geocell mattress increases significantly.
Design of geocell-reinforced soil slopes for cuts and fills up to 1:1.5 inclination. Includes stability analysis using Bishop's method and verification of internal sliding resistance along the geocell-subgrade interface.
02
Load support for access roads
Geocell mattresses for unpaved access roads and temporary construction platforms. Design considers traffic frequency, axle load, and subgrade CBR to determine cell height and fill thickness.
03
Retaining wall fascia systems
Geocell-faced retaining walls for heights up to 4 m. Design includes wall inclination, backfill drainage, and seismic load verification per AS/NZS 1170.4 for Launceston's moderate seismicity zone.
Applicable standards
AS 4678-2002 Earth-retaining structures, AS/NZS 1170.0:2002 Structural design actions, AS 1289 Standard test method for deterioration of geotextiles by exposure to light, moisture and heat, AS 1289 Standard test method for strength of geotextile seams
Frequently asked questions
How much does geocell design cost in Launceston?
The cost for a full geocell design package in Launceston typically ranges between AU$1,160 and AU$4,430, depending on site complexity, number of design sections, and the level of laboratory testing required. This includes site-specific parameter determination and final design report.
What soil types in Launceston are best suited for geocell reinforcement?
Geocell reinforcement works well on the soft alluvial clays and silts found along the Tamar and South Esk Rivers. The system is most effective when the subgrade has an undrained shear strength of at least 15 kPa, which is common in Launceston's low-lying areas. Very soft organic soils with shear strengths below 10 kPa may require pre-treatment before geocell placement.
How long does a geocell design take from site data to final report?
For a typical Launceston project, the design process takes 10 to 15 working days after receiving the geotechnical investigation report. This includes parameter selection, stability calculations, and drafting of construction drawings. Expedited service is available for projects with tight deadlines.
