Launceston sits on a mix of Quaternary alluvial deposits and Tertiary basalts along the Tamar River valley. The water table fluctuates between 2 and 6 m depth depending on proximity to the river. This geological setting makes subsurface detection tricky — clay-rich layers attenuate radar signals, while basalt boulders create false reflections. A GPR survey in Launceston uses high-frequency antennas (250 MHz to 1 GHz) to map these heterogeneities before excavation. Interpreting the radargrams requires local calibration. We integrate the results with calicatas exploratorias to ground-truth anomalies when target depth exceeds 3 m.
In Launceston, GPR penetration drops to 1.5 m in saturated clay — local calibration of radar velocity is essential for accurate depth estimation.
Methodology and scope
A common mistake among contractors in Launceston is assuming GPR alone can resolve every buried object. Without proper gain settings and migration processing, a buried pipe at 1.5 m can appear as a diffuse hyperbola. The survey must account for the electrical conductivity of the soil — values above 100 mS/m reduce penetration depth below 2 m. Key parameters we control include:
Antenna frequency selection based on target depth and soil resistivity
Real-time gain adjustment to compensate for signal attenuation in wet clay
Post-processing with Kirchhoff migration to collapse hyperbolas into point reflectors
We cross-reference anomalies with ensayo SPT data when the target is a void or loose fill zone.

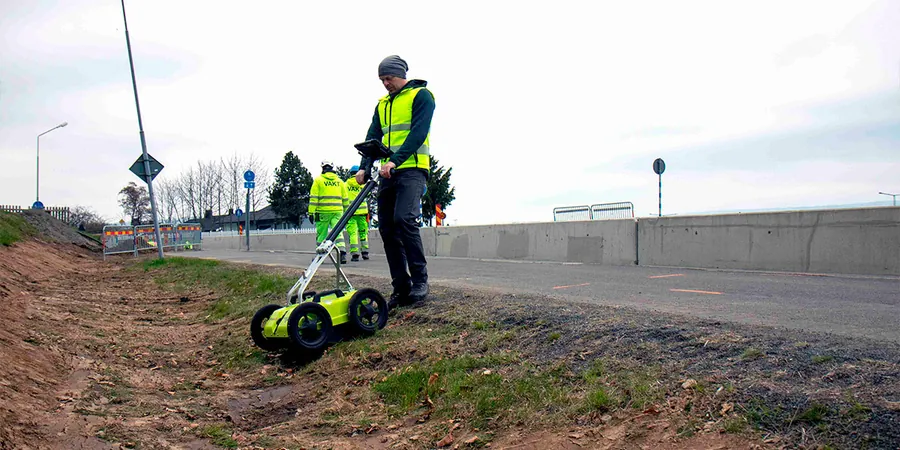

Technical reference image — Launceston
Local considerations
In western Launceston near Inveresk, sandy gravels allow GPR penetration up to 4 m. Two kilometers east at Mowbray, the same survey struggles past 1.2 m due to high-plasticity clay. This spatial variability is the main risk. If the radar velocity is not calibrated on-site using a known reflector (e.g., a buried metal plate), depth errors exceed 30%. Missing a shallow utility or void during a GPR survey in Launceston can lead to service strikes or differential settlement under new footings. We always perform a common-midpoint (CMP) gather to measure actual velocity before starting the grid.
Locate metallic and non-metallic pipes, cables, and conduits using 400 MHz and 900 MHz antennas. Depth accuracy ±0.1 m after velocity calibration.
02
Void and cavity detection
Identify air-filled voids, sinkholes, and poorly compacted fill. We use a 250 MHz antenna with 3D grid acquisition and time-slice analysis.
03
Concrete scanning
Reinforcement mapping, tendon duct location, and void detection in slabs and walls. High-frequency 1.6 GHz antenna with real-time display.
04
Geological profiling
Map stratigraphic boundaries, bedrock depth, and paleochannels. Low-frequency 100 MHz antenna with 500 m line length for deep profiling.
Applicable standards
AS 1726 – Geotechnical site investigations, AS 4799 – Installation of underground utility services, AS 1289.7.3 – Standard guide for GPR testing
Frequently asked questions
How deep can GPR penetrate in Launceston soils?
Depth depends on soil conductivity. In dry sandy gravels around Invermay, penetration reaches 4–5 m. In saturated clays common at Mowbray, depth drops to 1.2–1.5 m. We always run a velocity calibration test on site before starting the survey.
Does GPR detect plastic pipes?
Yes, but only if the pipe is surrounded by material with a different dielectric permittivity. A dry PVC pipe in clay produces a clear hyperbola. A water-filled pipe in saturated soil is nearly invisible. We recommend marking known plastic lines before the survey.
What is the typical cost of a GPR survey in Launceston?
Prices range from AU$1,380 for a small utility locate (1–2 days) to AU$2,220 for a 3D grid survey over 500 m². These are reference values — actual cost depends on site area, antenna selection, and post-processing complexity.
Do you need surface access restrictions for GPR?
GPR requires smooth, clear ground. Grass taller than 150 mm must be cut. Equipment, vehicles, and debris should be moved off the survey area. Uneven surfaces cause antenna coupling loss and reduce data quality.
