Launceston grew fast during the 19th century, with buildings climbing the steep slopes of the Tamar Valley. Back then, retaining walls were built mostly by eye, using local basalt and sandstone. Those old walls still stand in neighborhoods like West Launceston and East Launceston, but modern loads are heavier. We now design walls that hold back gardens, car parks, and even three-storey townhouses. Before we size a wall, we always run a soil classification to know what we are dealing with. That first step saves headaches later. The city sits on a mix of Tertiary basalt flows, alluvial silts, and colluvial clays. Each material behaves differently under lateral pressure. We have seen walls fail in this region because the designer assumed uniform soil. That assumption does not hold here. Ground conditions change fast between blocks. Our team walks every site before we put pen to paper.
For walls in Launceston, the critical parameter is effective cohesion of residual basalt clay – it can vanish after wet winters.
Methodology and scope
Launceston sits at an elevation of just 15 m above sea level along the river, but the hills rise to over 200 m within a few kilometres. That relief drives the need for retaining walls. The city receives about 670 mm of rain per year, which saturates the upper clays and reduces their shear strength. In our experience, the critical parameter for wall design here is the effective cohesion of the residual basalt clay. It can drop to near zero after prolonged wet periods. We also measure the soil-wall friction angle with direct shear tests. For deeper walls, we couple the design with an SPT sounding to check for buried gravel layers that could cause drainage problems. The main characteristics we evaluate are:
Active and passive earth pressures (Rankine or Coulomb) based on wall type
Drainage conditions – weeps, drains, or waterproofed backfill
Bearing capacity of the founding soil under the wall base
Global stability of the slope behind the wall
All this feeds into a wall that works for Launceston's specific geology.

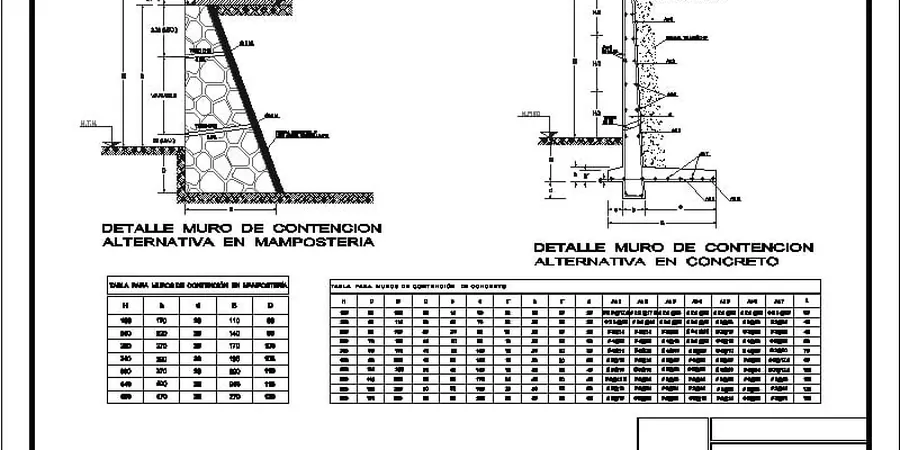

Technical reference image — Launceston
Local considerations
Compare two suburbs: Invermay, built on deep alluvial silts near the river, and Trevallyn, cut into weathered basalt on the escarpment. In Invermay, the risk is soft ground that cannot hold a cantilever wall without deep embedment. We have seen walls there tilt 50 mm in one wet winter. In Trevallyn, the risk is different – the basalt has hard boulders that make excavation expensive, but the soil itself has good strength. The real danger comes from water. If the wall lacks drainage, hydrostatic pressure builds behind it and pushes it over. We always model the worst-case groundwater level, not the dry summer condition. That is where most commercial designs for Launceston fall short.
Design of mass concrete or reinforced concrete walls for heights up to 6 m. We check overturning, sliding, and bearing capacity. Suitable for Trevallyn and West Launceston basalt sites.
02
Reinforced soil (MSE) walls
Mechanically stabilized earth walls with geogrid or steel strips. Ideal for fill slopes in new subdivisions around Prospect Vale and Kings Meadows. We include internal and external stability checks.
03
Temporary shoring and anchored walls
Design of soldier piles, sheet piles, and ground anchors for excavations near existing buildings. Common in central Launceston basement jobs. We apply AS 4678 and AS 1726 methods.
Applicable standards
AS 4678-2002 – Earth-retaining structures, AS 1726-2017 – Geotechnical site investigations, AS/NZS 1170.2:2021 – Wind actions (for walls above grade)
Frequently asked questions
What is the typical cost range for retaining wall design in Launceston?
For a standard residential wall up to 3 m high, design fees range between AU$1.680 and AU$3.500. Larger walls or walls in soft ground can cost AU$4.200 to AU$7.100. This includes site inspection, soil testing, calculations, and a signed report.
Do I need a geotechnical report before building a retaining wall in Launceston?
Yes, if the wall exceeds 1 m in height or is located on a slope. Council requires a geotechnical assessment under AS 4678. We have seen walls rejected because the soil was assumed cohesive when it was actually granular. A report avoids that.
How long does the design process take?
Typical turnaround is 5 to 10 business days. Simple walls on known basalt sites take less time. Walls in Invermay alluvium require more testing, so add a week. We coordinate with your builder to meet the construction schedule.
What drainage do you recommend for retaining walls in Launceston's wet climate?
We specify a granular drainage layer behind the wall, connected to perforated pipes at the base. For walls over 2 m, we add geocomposite drainage strips. Without drainage, water pressure can double the load on the wall. That is the most common cause of failure in Launceston.
