In Launceston, many developers overlook how the region's deep clay profiles and variable groundwater affect slope stability until cracking appears in retaining walls or pavement. We regularly assess cut slopes, embankments, and natural hillsides using both limit equilibrium and finite element methods. Before any major excavation, a thorough ensayo SPT helps define soil strength parameters, while the estudio de mecánica de suelos provides the baseline stratigraphy needed for accurate modeling. Our approach combines field investigation with software like Slide and Plaxis to deliver actionable factors of safety.
We routinely find that ignoring perched water tables after Launceston's winter rainfall leads to unconservative factors of safety by 20-30%.
Methodology and scope
Launceston sits on Tertiary basalts overlain by alluvial silts and clays, with the Tamar River influencing shallow groundwater tables between 2 and 5 meters depth. This combination creates a classic slow-moving soil creep problem on slopes steeper than 15 degrees. Our analysis covers:
Limit equilibrium (Bishop, Spencer, Morgenstern-Price) for simple planar or circular failures
Finite element modeling with undrained and drained shear strengths from triaxial and direct shear tests
Sensitivity analysis for perched water tables after heavy rainfall events common in northern Tasmania
Each model uses site-specific cohesion and friction angles calibrated against AS 4678-2002 earth-retaining structures requirements.

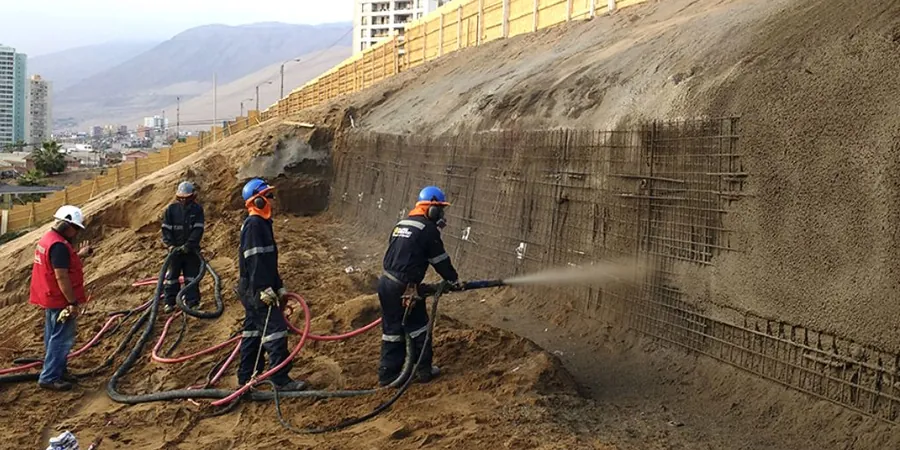

Technical reference image — Launceston
Local considerations
Launceston recorded a mean annual rainfall of 667 mm over the last decade, but its winter months concentrate 40% of that total, saturating the deep clay layers that underlie residential subdivisions on the eastern escarpment. A single poorly designed cut slope in these conditions can trigger progressive failure within two wet seasons, damaging adjacent structures or blocking access roads. Our slope stability analysis identifies critical slip surfaces and recommends drainage, soil nailing, or geometric flattening before construction begins — avoiding costly reactive repairs later.
c', phi' from consolidated undrained triaxial (CU) and direct shear tests
Groundwater modeling
Phreatic surface from standpipe piezometers; worst-case perched water scenario
Failure surface search
Automatic grid search with 500+ trial surfaces; manual verification for complex geology
Associated technical services
01
Limit equilibrium analysis
Bishop, Spencer, Morgenstern-Price and Janbu methods for circular and non-circular failure surfaces. We use Slide or SLOPE/W with automatic search routines.
02
Finite element modeling
Plaxis 2D models incorporating stress-strain behavior, staged excavation, and pore pressure dissipation. Suitable for complex geometry or soft clay profiles.
03
Probabilistic sensitivity analysis
Monte Carlo simulations to assess the impact of soil variability, groundwater fluctuation, and strength parameter uncertainty on factor of safety.
04
Remediation design
Soil nailing, anchored walls, drainage blankets, or slope regrading to achieve target factors of safety. We provide construction-ready drawings and specifications.
Applicable standards
AS 4678-2002: Earth-retaining structures, AS 1726-2017: Geotechnical site investigations, AS/NZS 1170.4:2007 (R2016): Structural design actions – Earthquake actions in Australia, FHWA-NHI-05-089: Slope stability reference manual
Frequently asked questions
What is the typical cost of a slope stability analysis in Launceston?
For a standard residential cut slope or small embankment, expect between AU$2,200 and AU$6,210 depending on the number of sections, groundwater monitoring, and laboratory testing required.
How long does a slope stability study take for a Launceston site?
A typical study takes 2 to 4 weeks from site investigation to final report. Complex sites with deep clay profiles or perched water may require additional drilling and laboratory testing, extending the timeline to 5 weeks.
What minimum factor of safety does AS 4678 require for permanent slopes?
AS 4678-2002 recommends a minimum factor of safety of 1.5 for permanent slopes under static conditions and 1.1 under seismic loading. For temporary excavations, 1.3 is often accepted, but we always verify with the local council and geotechnical engineer.
