Launceston grew along the Tamar River estuary, where repeated flooding deposited layers of alluvial silts and clays over the past 10,000 years. These fine-grained soils, combined with shallow basalt flows from the nearby Western Tiers, create a subgrade profile that varies dramatically within a single block. For any pavement project in Launceston, understanding how these materials behave under load is essential. The road subgrade design must account for moisture-sensitive clays that lose bearing capacity when wet, a condition common in the city's lower-lying areas near the North Esk River. Experienced teams start with a site investigation that includes testing of soil plasticity to classify the material, then correlate that data with expected CBR values for pavement thickness design.
For Launceston's moisture-sensitive clays, a 300 mm granular capping layer and geotextile separator can reduce long-term pavement rutting by up to 60%.
Methodology and scope
A real scenario: a new access road for a warehouse development on the eastern outskirts of Launceston, where the topsoil sat on a 2-meter layer of firm clay over weathered basalt. The design team faced two challenges — the clay's high plasticity index of 45% and a groundwater table only 1.2 meters deep. They specified a 300 mm granular capping layer to separate the subgrade from the pavement base, then modelled the long-term deformation using repeated load triaxial tests. To verify the design assumptions on site, the team ran dynamic cone penetrometer tests at 50-meter intervals along the alignment. This allowed them to detect soft spots before placing the capping layer. The final subgrade design included a geotextile separator and a drainage blanket to control moisture migration upward during winter rains.

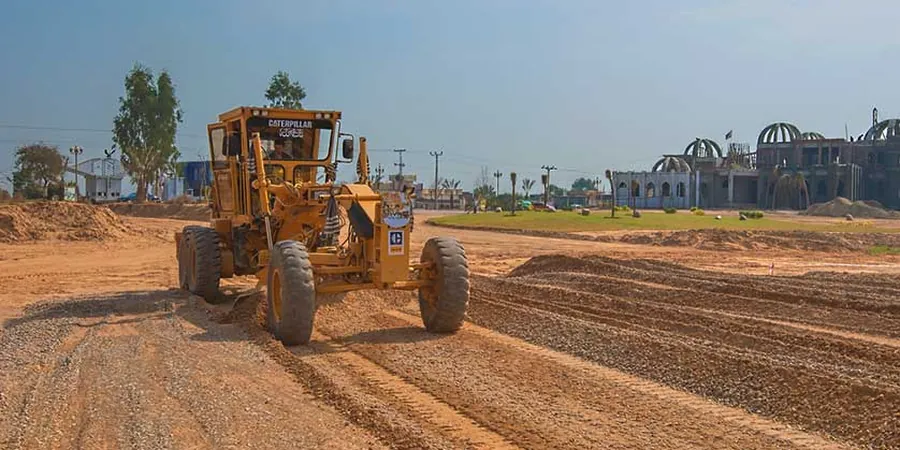

Technical reference image — Launceston
Local considerations
AS 1726:2017 Geotechnical Site Investigations sets the framework for subgrade characterisation in Australia, but Launceston's unique geology demands extra caution. The alluvial clays in the Inveresk and Invermay precincts are known to undergo significant volume change with moisture variation — up to 8% swell potential in some layers. When a road subgrade design ignores this behaviour, pavement surfaces develop longitudinal cracking and edge drop-offs within two to three years. The city council now requires a swelling index test (AS 1289.7.1) for any pavement project within 200 meters of the Tamar River. Our approach combines this data with a site-specific moisture regime model to predict subgrade performance over the design life.
Boreholes and test pits to recover undisturbed samples, followed by laboratory CBR tests at soaked and unsoaked conditions. We also perform in-situ DCP tests to map strength profiles along the alignment.
02
Pavement Design Parameters
Determination of resilient modulus (Mr) through repeated load triaxial testing, classification of subgrade materials per AS 1726, and correlation with Austroads design charts for flexible and rigid pavements.
03
Moisture & Swell Assessment
Evaluation of volume change potential using free-swell oedometer tests and soil suction measurements. We provide recommendations for capping layer thickness, drainage, and subgrade stabilisation where required.
Applicable standards
AS 1726:2017 — Geotechnical Site Investigations, Austroads Guide to Pavement Technology Part 2: Pavement Structural Design, AS 1289.6.1.1 — Standard Test Method for CBR of Laboratory-Compacted Soils
Frequently asked questions
What makes Launceston subgrades different from other Australian cities?
Launceston's subgrades are dominated by alluvial clays and silts from the Tamar River floodplain, with plasticity indices often exceeding 40%. These soils are highly sensitive to moisture changes, meaning the same subgrade can have a soaked CBR of 2% and an unsoaked CBR of 8%. This variability requires a site-specific moisture regime analysis rather than relying on generic design values.
What is the typical CBR value for road subgrade design in Launceston?
For most Launceston clay subgrades, the design CBR ranges from 2% to 6% when tested at soaked conditions, and up to 10% at field moisture content. The lower end applies to areas like Invermay and Mowbray where the water table is shallow. We always recommend site-specific testing because the CBR can change significantly within a single street segment.
How long does a road subgrade design study take in Launceston?
A typical investigation for a local road or subdivision takes 2 to 4 weeks from field work to final report. This includes drilling 3 to 5 boreholes, laboratory CBR and plasticity tests, and the pavement design analysis. Larger arterial road projects with higher traffic volumes may require 6 to 8 weeks due to additional resilient modulus testing.
What is the cost range for road subgrade design services in Launceston?
The cost for a complete subgrade investigation and pavement design report in Launceston typically falls between AU$1.570 and AU$5.300, depending on the number of boreholes, laboratory tests required, and the complexity of the pavement structure. A basic CBR assessment for a small driveway or car park starts around AU$1.200.
