In Launceston, many tunnel projects face the challenge of soft alluvial soils and high groundwater tables near the Tamar River. We provide geotechnical analysis for soft soil tunnels focused on ground classification, stress history, and short-term stability. Our team runs field investigations and lab tests to define soil parameters for design. Before any tunneling starts, we often recommend a permeability field test to estimate water inflow rates, or a CPT sounding for continuous stratigraphic profiling. These methods give us reliable data to model excavation behavior in Launceston's urban subsoils.
Soft clays in Launceston can have undrained shear strengths below 25 kPa; tunnel face support must be designed accordingly to avoid collapse.
Methodology and scope
Launceston's geology includes Quaternary alluvium, estuarine clays, and occasional peat lenses, with depths of soft clay reaching up to 15 meters in some suburbs. Our analysis covers soil classification, undrained shear strength, consolidation parameters, and sensitivity. We follow AS 1726-2017 for sampling and AS 4678-2002 for earth retaining structures. For tunnel face stability, we use limit equilibrium and finite element methods. In soft ground, we also apply inclinometer monitoring to track lateral movements during excavation. If settlement control is critical, we integrate preloading and surcharging as a ground improvement strategy before tunneling begins. This approach minimizes surface damage in built-up areas of Launceston.

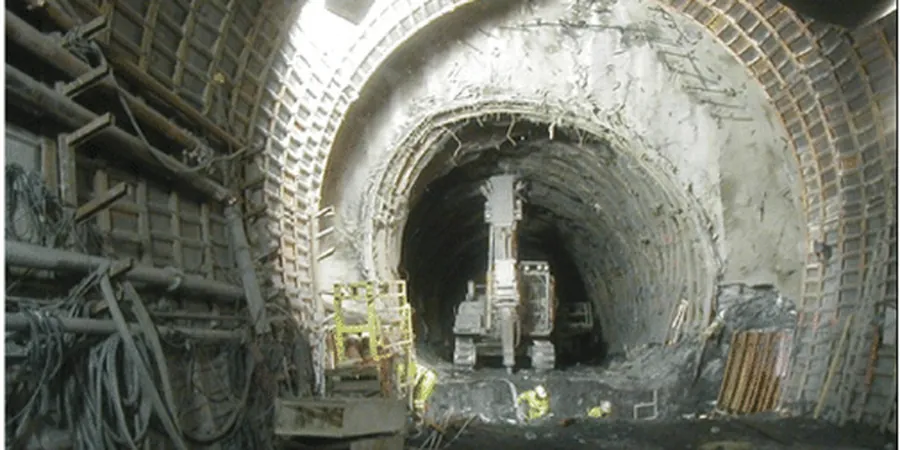

Technical reference image — Launceston
Local considerations
Launceston lies in a moderate seismic zone (AS/NZS 1170.4 hazard factor Z ≈ 0.08). Soft soils amplify long-period motions, which can destabilize tunnel linings. Without a proper geotechnical analysis for soft soil tunnels, the risk of face collapse, excessive settlement, or lining cracking rises sharply. We have seen cases where inadequate assessment led to 150 mm of surface subsidence in residential streets. A thorough evaluation of cyclic strength and liquefaction potential is essential; we incorporate MASW testing to map shear wave velocity profiles and identify soft layers prone to strain softening.
We evaluate face support pressure using limit equilibrium and empirical methods. Our team runs triaxial and direct shear tests on undisturbed samples to define strength parameters. For shallow tunnels, we also check blow-out and settlement risks.
02
Ground Deformation & Settlement Analysis
We predict surface and subsurface movements using numerical modeling (FEM). Inputs include stiffness moduli from oedometer and triaxial tests. We recommend monitoring points and trigger levels for urban areas.
03
Liquefaction & Seismic Design Input
We assess liquefaction potential using SPT and CPT-based methods (Youd & Idriss, 2001). For soft soils, we also evaluate cyclic softening and post-cyclic strength loss. Results inform lining ductility and joint detailing.
Applicable standards
AS 1726-2017 Geotechnical Site Investigations, AS 4678-2002 Earth Retaining Structures, AS/NZS 1170.4-2007 Structural Design Actions — Earthquake, AS 1289.3.6.1 Particle-Size Analysis, AS 1289.3.1.1 Atterberg Limits
Frequently asked questions
What does a geotechnical analysis for soft soil tunnels in Launceston include?
It includes site investigation (boreholes, CPT, sampling), laboratory testing (classification, strength, consolidation), numerical modeling of face stability and ground movements, and seismic hazard assessment. We also provide recommendations for support type and monitoring.
How much does a geotechnical tunnel study cost in Launceston?
The typical cost ranges from AU$6,400 to AU$29,070 depending on tunnel depth, number of boreholes, testing scope, and required numerical modeling. A preliminary desktop study is cheaper; a full design-level analysis sits at the higher end.
Why is soft soil tunneling riskier in Launceston than in hard rock?
Launceston's alluvial clays and silts have low strength and high compressibility. Groundwater is often shallow, increasing the risk of face instability and surface settlement. Additionally, soft soils can amplify seismic motions, requiring careful lining design.
Which standards govern tunnel geotechnics in Tasmania?
We follow AS 1726-2017 for site investigation, AS 4678-2002 for retaining structures, and AS/NZS 1170.4-2007 for seismic loads. For tunnel-specific design, we also reference the ITA Guidelines and FHWA manuals for soft ground tunneling.
